Product Name: Standing Lid-revolverFXZ-6
Product Category: Lid-revolver

Drawing home and abroad cap-revolver's lesson, aiming at the diversity of cap-revolving, the machine is designed as cap-revolver in common use.
Virtues: When bottle, cap is changed, needs not change parts, but adjust equipment, thus, having high cap-revolving qualification, high speed and convenient operation and maintenance. In addition, with two sets bottle-clamping ring belt apparatus, it suits for unstable and tall bottle.

Main Specification

Name Standing Lid-revolver
Model FXZ-6
Bottle diameter of suiting for φ35mm-φ96mm
Size of bottle lid φ12mm-φ70mm
Production capacity ?8000 bottles/hour
Air pressure 0.5-0.7Mpa
Power source 220V, 50Hz
Total power 2KW
Weight about 850Kg
Contour dimensions 2000×950×2100（L×W×H)(mm)

View Catalog
Product Name: AUTOMATIC AMPOULES FILLING& SEALING MACHINE
Product Category: Sealing Machine
AGF TYPE AUTOMATIC AMPOULES FILLING& SEALING MACHINE


The machine is used filling and sealing for 1-20ml ampoules bottles under sterilized conditions.
The machine can carry out the programs of conveying, nitrogen pre-charging, filling, nitrogen post-charging, pre-heating. Sealing step by step for six or eight ampoules bottles simultaneously. The speed can be adjusted with no-grade and touching-screen operation stop filling without bottles and no drop of liquid .head of filling\vice of capping all can be stopped with high-seat and adjust to easy.
The machine adopted complete 100 stage laminar flow purifying device and have metal-rotate-pump, glass-pump for filling liquid to selects. It meets the requirement of GMP.

View Catalog
Product Name: TYPE POWDER SCREWBAR FILLING MACHINE
Product Category: Screwbar Filling Machine
FJZ-240 TYPE POWDER SCREWBAR FILLING MACHINE


As a chief machine in powder-production line. It is used to fill and plug for various antibiotic bottles and also other related process.
It applies to imported step-by-step motor, converter and PLC controller. With man --machine face to face the whole system has many features such as high automation easy to run automatically filling plugging, alarming when screwbar contacts housing ,no filling & counting without bottles and checking alarming-records. a hundred layers-flow cleaning apparatus are fitted on working-table. The parts contacting drug are wholly made of 316L stainless steel. It meets the requirement of GMP.

MAIN TECHNICAL PARAMETERS
Capacity:0-240 bottles/min
Suitable bottles:5-25ml（Mold,tube） (made to order)
Filling wight:0.2-3g
Plugging ratio:?99c/o
Filling precision: meets state pharmacopoeia
Power supply : 380V,50Hz,3 phases with 4 lines
Total power: 1.2Kw
Overall size:1700*1700*1500(mm)

View Catalog

View Catalog

Product Name: Leveling Bag-filling Powder PackerDXD-180
Product Category: Powder packer


Drawing home and abroad bag-filling packer's advanced experience, optimized western nation's newest technology, using PLC programmable controlling, with advanced touching screen person-machine interface system, so far, the machine is fairly ideal large dose bag-filling packing equipment. The machine's design is reasonable and its exterior is novel. It uses standard stripe to seal. It suits for powder and water if changing filler. It can use three-side sealing and four-side sealing to seal according to users' requirement. Because of redesigning in the equipment's structure and principle, optimizing and improving, making bag's exterior level, pretty, to largely increase the packing dose with double-link bag-filling.

Main Specification

Name Leveling Bag-filling Powder Packer
Model DXD-180
Measure precision ±1％
Filling capacity 200ml, 100ml
Production capacity 40-60bags/min
80-120bags/min
Size of packing bag 85×100mm(min) 180×225mm(max)
(60+60)×70mm(min) (90+90)×220mm(max)
Film inner diameter φ70-80mm
Film outside diameter ?500mm
Power source 380V 50Hz
Total power 5KW
Weight about 1200Kg
Contour dimensions 3260×1000×1540（L×W×H)(mm)

View Catalog

 Product Name: Leveling Bag-filling Water PackerDXD-180
Product Category: Powder packer

Drawing home and abroad bag-filling packer's advanced experience, optimized western nation's newest technology, using PLC programmable controlling, with advanced touching screen person-machine interface system, so far, the machine is fairly ideal large dose bag-filling packing equipment. The machine's design is reasonable and its exterior is novel. It uses standard stripe to seal. It suits for powder and water if changing filler. It can use three-side sealing and four-side sealing to seal according to users' requirement. Because of redesigning in the equipment's structure and principle, optimizing and improving, making bag's exterior level, pretty, to largely increase the packing dose with double-link bag-filling.

Main Specification

Name Leveling Bag-filling Water Packer
Model DXD-180
Measure precision ±1％
Filling capacity 200ml, 100ml
Production capacity 40-60bags/min
80-120bags/min
Size of packing bag 85×100mm(min) 180×225mm(max)
(60+60)×70mm(min) (90+90)×220mm(max)
Film inner diameter φ70-80mm
Film outside diameter ?φ500mm
Power source 380V 50Hz
Total power 5KW
Weight 950Kg
Contour dimensions 3260×1000×1540（L×W×H)(mm)

　

View Catalog

 Product Name: Leveling Bag-filling Powder PackerDXD-140
Product Category: Powder packer

　

Drawing home and abroad bag-filling packer's advanced experience, optimized western nation's newest technology, using PLC programmable controlling, with advanced touching screen person-machine interface system, so far, the machine is fairly ideal large dose bag-filling packing equipment. The machine's design is reasonable and its exterior is novel. It uses standard stripe to seal. It suits for powder and water if changing filler. It can use three-side sealing and four-side sealing to seal according to users' requirement.

Main Specification

Name Leveling Bag-filling Powder Packer
Model DXD-140
Measure precision ±1％
Filling capacity 60ml
Production capacity 40-60bags/min
Bag width 65-140mm
Bag height 70-180mm
Film inner diameter φ70-80mm
Film outside diameter φ500mm
Power source 380V 50Hz
Total power 3.5KW
Weight about 1000Kg
Contour dimensions 2440×940×1540（L×W×H)(mm)

　
Product Name: Auto-checking Forming AI-blister Packaging Machine
Product Category: Packing Machine
DPB-140B Model Auto-checking Forming AI-blister Packaging Machine  (Double Aluminum Packaging Machine)

　

View Catalog

View New Catalog

　
It is the latest scientific products for pharmaceutical factory and health care factory as well as foodstuff process factory. It is adopted with micro-computer PLC man-machine interface to operation ,frequency converter high automation, ease of operation, advanced technology, full purpose,l ong durability, in accordance with GMP rule requirement, currently it is the ideal packaging equipment with high popularity .The products have been passed the provincial science and technology appraisal.
Features:
■With inductive self-checking mechanism established, it can eliminate by itself the waste plate with lack of particle, The qualified rate reaches 100%
■ The main transmission is adopted with swinging pin-wheel reducer. with Long life ,lower noise, and stable running.
■ Plate structure, adjustable stroke so it can be suited for such as cicle, ellipse, square, triangle,or irregular shape, and suitable for multiple specifications of products.
■ Equipped with cursor trace registration, good looking sealing.
Notes: It can be added ink-let printer according to the requirement of user.
Main Technical Parameters
Punching time (t/min)
Hardness aluminum6~25, AI-plastic paper-plastic 6~35
Max Product Capacity (thus pcs/h)
Al-Al4.5, Al-plastic 11
Max. forming area and depth (mm)
Al-Al 140*110*14, Al-plastic 140*110*26
Stroke (mm)
40-120 （Designed according to requirement）
Standard carving (mm)
80*57 （Designed according to requirement）
Air Pressure (Mpa) 0.4-0.6 （air supply） 0.2m3/min
Total power 380v/220v 50Hz 3.6kw
Main motor power (kw) 1.1
Forming aluminum (mm) 0.085-0.1*140
PVC hard pieces (mm) 0.15-0.5*140
PTP Aluminum Foil (mm) 0.02-0.035*140
Dialyser (mm) 50-100g*140
die Cooling Running water or recycling water
Overall Dimensions (mm)
2300*560*1410(L*W*H)
Weight(kg) 600

View Catalog

 Product Name: Round, Flat, Square Undry-clue Label-stickerTX-150
Product Category: Label-sticker

The machine is especially designed aiming at the industry of daily chemical products, medicine and foodstuff, it is used in many symmetry or unsymmetrical round/flat/square vessel's label-sticking in all around. Simple adjustment and wide applicability: Having a little adjustment, it can change each other between rolling sticking and side sticking. One machine can complete multi-size vessel's label-sticking (round/flat/square bottle).

Main Specification

Name Round, Flat, Square Undry-clue Label-sticker
Model TX-150
Label-sticking precision ±1mm
Label-sticking speed 0-25m/min
Bottle diameter of suiting for (round)diameter?90mm, height?300mm
(square, flat)width?90mm, height?300mm
Power source 220V 50Hz
Total power 1.5KW
Weight 400Kg
Contour dimensions 500×1500×1560（L×W×H)(mm)

　

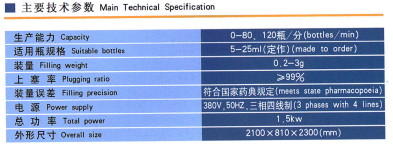

FJZ-120 TYPE LINEAR POWDER SCREWBAR FILLING MACHINE

View Catalog
TN-150 ROUND BOTTLE UNRRIED-GLUE LABEL-STICKER

View Catalog
DPB-140 MODEL FLAT PLATE AUTO BLISTER PACKING MACHINE

View Catalog
ZTQ YTPE AUTOMATIC THICK-LIQUID LABELING MACHINE

　

View Catalog
DPB-250b MODEL AUTO-CHECKING FORMING Al-BLISTER PACKAGING MACHINE
(DOUBLE ALUMINIUM PACKAGING MACHINE)

View Catalog

　

View New Catalog

　
DPB-250E MODEL FLAT PLATE AUTO BLISTER PACKAGING MACHINE

View Catalog

　
AUTOMATIC PACKER OF BGZ260-C MODEL EDITION

View Catalog
Product Name:ZTB-500 duplex paper fold candy wrapper
　
Product Information：
The wrapper is used to wrap cubic candies.
It is an innovation based on the advantages of similar products for cubic candy.
With reasonable structure, the machine has higher capacity and can wrap candies in pleasant appearance
and good sealing. If required by the client, a complete set with two wrappers can be equipped to wrap
individual candies at first, and then pack five pieces of candies in a stick.
The machine has filled up the gap in China market
and was listed as one of the high-tech products of Jiangsu province in 2004.

　
　
